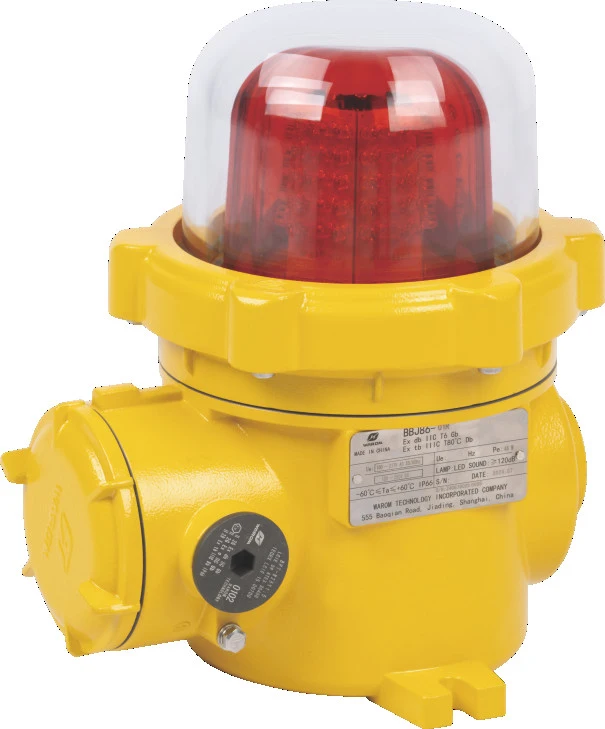

BBJ86 Series Explosion-proof Audio And Visual Caution Spotlight Fittings

Product Details

Place of Origin: CHINA

Model Number: BBJ86

Payment & Shipping Terms

Specifications

Highlight: Explosion-proof Caution Spotlight Fittings, Explosion-proof Audio Spotlight Fittings, BBJ86 Series Spotlight Fittings

Flash Frequency:	150~160(times/min)	Ultra-bright LED Lamp:	Low Power Consumption And Longservice Life
Terminal:	3 X 1.5~2.5mm² (L+N+PE)	Product Name:	BBJ86 Series Explosion-proof Audio And Visual Caution Spotlight Fittings (Ex Db IIC)
Enclosure Surface:	Powder Coated Yellow (RAL1021)	Transparent Cover Material:	Toughened Glass
Ambient Temperature:	-60℃~+60℃	Cable Gland:	DQM- (Ex D) Or DQM-ll (Ex D) Is Recommended

Description

BBJ86 Series Explosion-proof Audio And Visual Caution Spotlight Fittings

Product Introduction

BBJ86 Series Explosion-proof Audio And Visual Caution Spotlight Fittings 0

BBJ86 Series Explosion-proof Audio And Visual Caution Spotlight Fittings 1

Specification

Global (IECEx)	IECEx PCET 24.0028X
Gas and dust	Ex db llC T6 Gb Ex tb lllC T80℃ Db
Europe(ATEX)	ATEX (applied for)
Gas and dust	ll 2 G Ex db llC T6 Gb ll 2 D Ex tb lllC T80℃Db
Certificates	IECEx; ATEX;
Conformity to standards	EN; IEC
Degree of protection	IP66

Data

Material	Enclosure: Copper-free aluminium alloy, powder coated surface, yellow Transparent cover: Toughened glass, stands 4J impact Exposed fastener: Stainless steel
Lamp power (W)	45W, 35W, 10W
Lamp colour	Red, blue,yellow,green
Ambient temperature	-60℃~+60℃
Rated voltage	100~277VAC 50/60Hz:130~250V DC; 12~48V AC/DC
Terminal	3 x 1.5~4mm² (L+N+PE)
Cable entries	3 x M25 x 1.5 plugs
