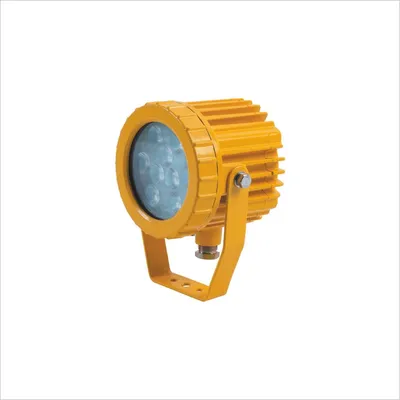

BAK85 Series LED Tank Inspection Vessel Light Fittings

Explosion proof 9W 5700K

Product Details

Place of Origin: China

Certification: IECEx;ATEX

Model Number: BAK85

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Specifications

Highlight: 9w 5700k tank inspection lights, explosion proof tank inspection lights, oem atex tank inspection light

Explosion Protection:	EN,IEC	Can Be Used:	Zone 1,2,21,22
Enclosure:	In Copper-free Aluminium Alloy, Powder Coated Surface, Yellow

Description

BAK85 Series LED Tank Inspection Vessel Light Fittings Explosion proof 9W 5700K

Product Introduction

BAK85 Series LED Tank Inspection Vessel Light Fittings Explosion proof 9W 5700K 0

Specification

Global (IECEx)	IECEx TPS 18.0011X
Gas and dust	Ex db op is IIC T6 Gb Ex tb op is IIIC T80℃ Db
Europe (ATEX)	TPS 18 ATEX 089761 0007X
Gas and dust	II 2 G Ex db op is IIC T6 Gb II 2 D Ex tb op is IIIC T80℃ Db
Certificates	IECEx; ATEX
Conformity to standards	EN; IEC
Degree of protection	IP66/IP67

Data

Enclosure	Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)
Glass cover	Toughened glass, stands 4J impact
Exposed fastener	Stainless steel
Lamp specification	International brand of LED module
Lamp power (W)	9W
Colour Temperature (CCT)	5700K
Rated voltage	100~277V AC 50/60Hz,100~250V DC,12~36V AC,12~48V DC
Earthing protection	M5 (internal & external earth bolts)
Ambient temperature	-40℃~+55℃
Terminal	3 x 1.5~2.5mm² (L+N+PE)
Cable entries	M20 x 1.5
Cable gland	Supplied with seal gasket and gland nut
Available cable outer diameter	Φ6~Φ12 (mm)
