BAJ52-6 Series Explosion-proof Emergency Light Fittings

Product Details

Place of Origin: CHINA

Certification: IECEX,ATEX

Model Number: BAJ52-6

Payment & Shipping Terms

Payment Terms: T/T

Specifications

Highlight: Explosion-proof Emergency Light Fittings, BAJ52-6 Series Emergency Light Fittings

Can Be Uesd In:	Zone 1 And Zone 2 Zone 21 And Zone 22 Class I Zone 1 And Zone 2 Class I ,Division 1,Groups A,B,C,D	Enclosure In:	Copper-free Aluminium Alloy, Powder Coatedsurface, Yellow (RAL1021).
Feature:	Emergency Device With Ni-CD Batteries, Charging Automatically;when Power Supply Is Cut Off, The Emerqency Device Startsto Work: With Overcharge And Overdischarge Protection.

Description

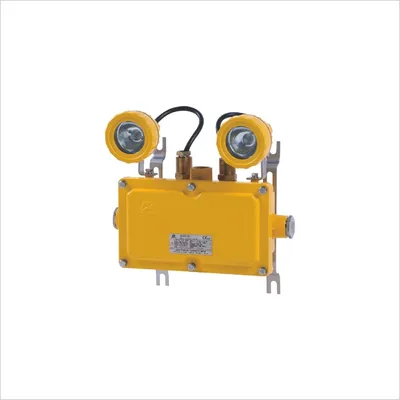

BAJ52-6 Series Explosion-proof Emergency Light Fittings

Product Introduction

BAJ52-6 Series Explosion-proof Emergency Light Fittings 0

Specification

Global (IECEx)	IECEx (applied for)
Gas and dust	Ex db llC T6 Gb Ex tb lllC T80℃ Gb
Europe (ATEX)	ATEx (applied for)
Gas and dust	ll 2 G Ex db IIC T6 Gb II 2 D Ex tb IIIC T80℃ Db
Certificates	IECEx; ATEX
Conformity to standards	EN; IEC
Degree of protection	IP66

Data

Available lamp	Halogen tungsten lamp (LED on request)
Lamp power (W)	2 x 3W
Emergency time	180min
Rated luminous flux	2 x 300lm
Description	Ni-CD battery
Rated capacity	4Ah
Rated voltage	3.6V
Charging time	24h
Ambient temperature	-40℃~+60℃
Terminal	3 x 1.5~2.5mm² (L+N+PE)
Cable entries	2 x M25 x 1.5 plugs
Cable gland (optional)	DQM-II (Ex d) or DQM-III (Ex d) is recommended.
Weight	8kg
