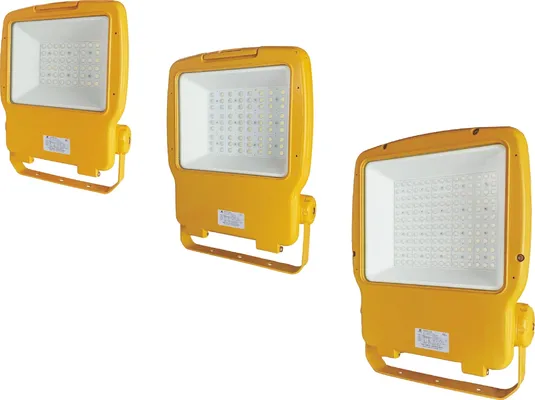

HRNT95 Series Explosion Proof LED Light Fittings Atex Led Floodlight 5000K

Product Details

Place of Origin: China

Certification: IECEx;ATEX;CU-TR

Model Number: HRNT95

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Specifications

Highlight: cenelec explosion proof led light fittings, 5000K explosion proof flood lights, harsh environments atex led floodlight

Explosion Protection:	CENELEC -IEC - NEC	Can Be Used In:	Zone 2Zone 22 Class L, Zone 2 Class L, Division 2, Groups A, B, C,D
Service Life:	Up To 100,000operating Hours

Description

HRNT95 Series Explosion Proof LED Light Fittings Atex Led Floodlight 5000K

Product Introduction

HRNT95 Series Explosion Proof LED Light Fittings Atex Led Floodlight 5000K 0

Specification

Global (IECEx)	IECEx EUT 18.0003X
Gas and dust	Ex nR IIC T□¹⁾ Gc Ex tc IIIC T□¹⁾Dc
Europe (ATEX)	EPTI 18 ATEx 0344X
Gas and dust	II3 G Ex nR IIC T□¹⁾ Gc II3 D Ex tc IIIC T□¹⁾ Dc
Certificates	IECEx; ATEX
Conformity to standards	EN 60079-0, EN 60079-15, EN 60079-31 IEC60079-0. IEC 60079-15, IEC 60079-31

Data

Material	Copper-free Aluminium Alloy, powder coated surface, Toughened glass, stands 4J impact
Lamp specification	LED module, Multiple LED
Lamp power(W)	80W,120W,150W,200W,240W,300W
Colour temperature (CCT)	5000K
Rated voltage	100~277V AC50/60Hz,130~250V DC
Degree of protection	IP66
Ambient temperature	-40°C~+55°C
Terminal	3x1.5~4mm² (L+N+PE)
Cable entries	1x M20x 1.5 cable gland (DQM-I Ex e)
