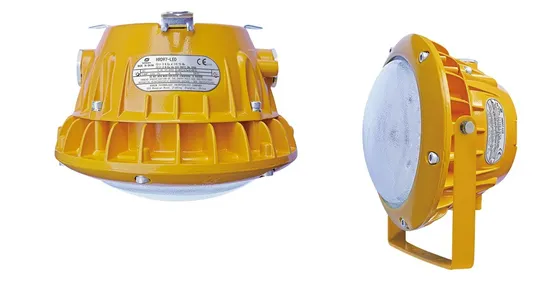

HRD97 Series Explosion Proof LED Light Fittings 10W 20W Atex Rated Lights IP66

Product Details

Place of Origin: China

Certification: IECEx; ATEX; CU-TR

Model Number: HRD97

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Specifications

Highlight: 155x155x210mm atex rated lights, IP66 explosion proof led light fittings, 20W IP66 industrial explosion proof lighting

Explosion Protection To:	IEC,NEC	Can Be Used In:	Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D
Applicable Lamp And Power(max.20W):	LED : 10W, 20W	Degree Of Protection:	IP66
Ambient Temperature:	-40℃~+60℃	Weight:	3.8kg
Rated Voltage:	100~277V AC 50/60Hz

Description

HRD97 Series Explosion Proof LED Light Fittings 10W 20W Atex Rated Lights IP66

Product Introduction

HRD97 Series Explosion Proof LED Light Fittings 10W 20W Atex Rated Lights IP66 0

Specification

Global (IECEx)	IECEx CQM 22.0036X
Gas and dust	Ex db IIC T6 Gb Ex tb IIIC T80℃ Db
Europe (ATEX)	UL 23 ATEX 3016X
Gas and dust	II 2 G Ex db IIC T6 Gb II 2 D Ex tb IIIC T80℃ Db
Certificates	IECEx; ATEX;
Conformity to standards	EN; IEC
Degree of protection	IP66
Ambient temperature	-40℃~+60℃

Data

Material	Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021) Toughened glass, stands 4J impact
Weight	3.8kg
Dimensions	155x155x210mm
Lamp specification	Integrated LED, Multiple LED
Lamp power (W)	10W, 20W
Rated voltage	24V AC 50/60Hz,36V AC 50/60Hz,100~277V AC 50/60Hz,24V DC,36V DC
Terminal	3 x 1.5~4mm² (L+N+PE)
Cable entries	M25 x 1.5
