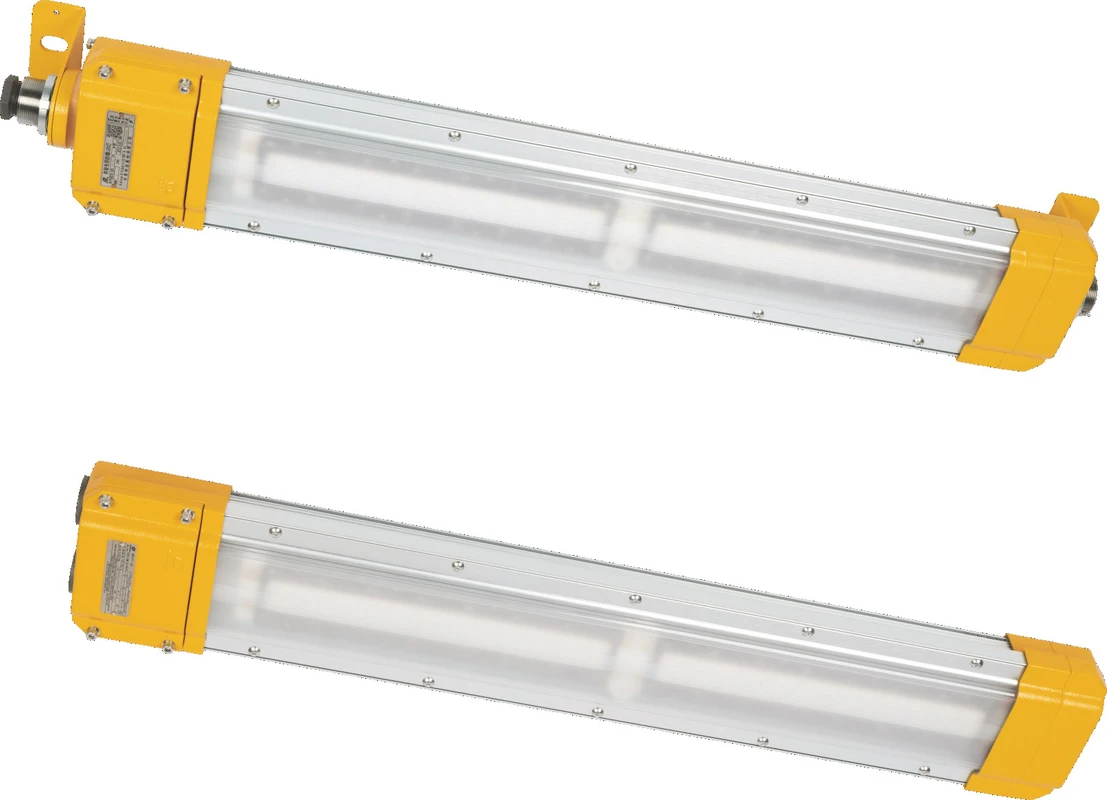

HRY97 Series Explosion Proof Led Light Fixture High Efficiency Energy Saving Atex IP66

Product Details

Place of Origin: China

Certification: IECEx; ATEX; CU-TR

Model Number: HRY97

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Specifications

Highlight: warom explosion proof led light fixture, high efficiency atex light fittings, IP66 lighting fixture explosion proof

Explosion Protection:	CENELEC,IEC,NEC	Can Be Used In:	Zone 1,Zone 2,Zone 21,Zone 22
Three Enclosure Types:	Type I, Type II And Type III Available Lamp And Power Type I: 20W Type II: 40W Type III: 60W	Enclosure In:	Copper-free Aluminium Alloy, Powder Coated Surface, Yellow (RAL1021)
Weight:	5.50~6.50kg	Lamp Power (W):	20W, 40W, 60W

Description

HRY97 Series Explosion Proof Led Light Fixture High Efficiency Energy Saving Atex IP66

Product Introduction

HRY97 Series Explosion Proof Led Light Fixture High Efficiency Energy Saving Atex IP66 0

Specification

Global (IECEx)	IECEx CQM 24.0001X
Gas and dust	Ex db eb mb llC T5/T4 Gb^') Ex tb lC T70℃/T90℃ DЫ'⁾
Europe(ATEX)	TÚV CY 25 ATEX 0207222 X
Gas and dust	II 2 G Ex db eb mb llC T5/T4 Gb^') II 2 D Ex tb lIC T70℃/T90'℃ Db^')
Certificates	IECEx; ATEX;
Conformity to standards	EN.IEC
Degree of protection	IP66
Ambient temperature	-40℃~+60℃

Data

Material	Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)
Weight	5.50~6.50kg
Dimentions
Lamp specification	LED module (supplied with the light fittings)
Lamp power (W)	20W, 40W, 60W
LED Colour temperature (CCT)	5000K Note: nature white is available in general. Warm white or cool white is optional, please specify when ordering.
Rated voltage	100-277V AC 50/60Hz 130~250V DC
Earthing protection	M4 (internal & external earth bolts)
Terminal	3 x 1.5~4mm²(L+N+PE)
Cable entries	12x M25 x 1.5 plugs
