HRMD93 Series Explosion Proof Distribution Panels For Hazardous Area

Product Details

Place of Origin: China

Certification: IECEx; ATEX;

Model Number: HRMD93

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Specifications

Highlight: IP66 explosion proof distribution panel, explosion proof distribution panels, explosion proof distribution panel board

Explosion Protection:

CENELEC,IEC,NEC

Can Be Used In:

Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D

Description

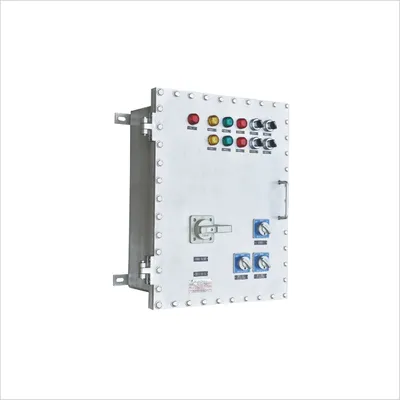

HRMD93 Series Explosion Proof Distribution Panels For Hazardous Area

Product Introduction

HRMD93 Series Explosion Proof Distribution Panels For Hazardous Area 0

Specification

Global (IECEx)	IECEx PCET 22.0011X
Gas and Dust	Ambient temperature range: -60℃≤Ta≤+40(+60℃) Ex db IIB T6...T4 Gb Ex db IIB+H₂ T6...T4 Gb Ex tb IIIC T80℃...T130℃ Db Ambient temperature range: -40℃≤Ta≤+40(+60℃) Ex db [ia Ga] IIB T6...T4 Gb Ex db [ib Gb] IIB T6...T4 Gb Ex db [ia Ga] IIB+H₂ T6...T4 Gb Ex db [ib Gb] IIB+H₂ T6...T4 Gb Ex tb IIIC T80℃...T130℃ Db
Europe (ATEX)	TPS 23 ATEX 089761 0029 X
Gas and Dust	Ambient temperature range: -60℃≤Ta≤+40(+60℃) II 2 G Ex db IIB T6...T4 Gb II 2 G Ex db IIB+H₂ T6...T4 Gb II 2 D Ex tb IIC T80℃...T130℃ Db Ambient temperature range: -40℃≤Ta≤+40(+60℃) II 2 G Ex db [ia Ga] IIB T6...T4 Gb II 2 G Ex db [ib Gb] IIB T6...T4 Gb II 2 G Ex db [ia Ga] IIB+H₂ T6...T4 Gb II 2 G Ex db [ib Gb] IIB+H₂ T6...T4 Gb II 2 D Ex tb IIIC T80℃...T130℃ Db
Certificates	IECEx; ATEX;CU-TR
Conformity to standards	EN 60079-0, EN 60079-1, EN 60079-11, EN 60079-31 IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 60079-31
Degree of protection	IP66
Ambient temperature	-40℃≤Ta≤+40(+60℃), -60℃≤Ta≤+40(+60℃)

Data

Material	Copper-free Aluminium Alloy, powder coated surface
Color	Window grey (RAL7040)
Dimensions	As per design
Rated voltage	Low voltage: MAX. 1000V AC 50/60Hz; MAX. 1500V DC High voltage: 6kV, 10kV, 24kV, 35kV AC 50/60Hz
Rated current	Max.2000A
Internal&external earthing	M6/M8,M8/M8
Cable entries	Standard MX1.5 plug
