BAG Series Explosion Proof Seal Bushings Protection IP66 Z H P Type

Product Details

Place of Origin: China

Certification: IECEx; ATEX; CU-TR

Model Number: BAG

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Specifications

Highlight: explosion proof seal bushings, protection ip66 seal bushings

Explosion Protection Standards:

CENELEC,IEC,NEC

Can Be Used In:

Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D

Description

BAG Series Explosion Proof Seal Bushings Protection IP66 Z H P Type

Product Introduction

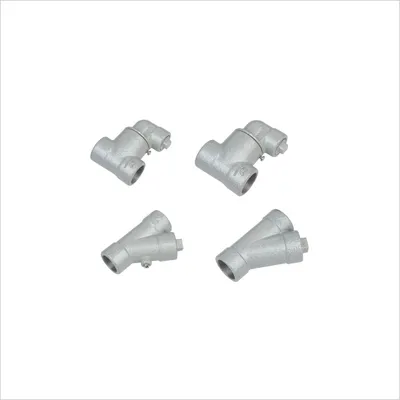

BAG Series Explosion Proof Seal Bushings Protection IP66 Z H P Type 0

Specification

Global (IECEx)	IECEx CQM 13.0029X
Gas and dust	Ex db IIC Gb; Ex eb IIC Gb; Ex tb IIIC Db
Europe (ATEX)	EPT 14 ATEX 1124X
Gas and Dust	II 2 G Ex db IIC Gb; II 2 G Ex eb IIC Gb
Gas and Dust	II 2 D Ex tb IIIC Db
Certificates	IECEx; ATEX; CU-TR
Conformity to standards	EN; IEC
Degree of protection	IP66
Ambient temperature	-60℃~+75℃

Data

Material	Copper-free Aluminium Alloy,powder coated surface.
Color	Window grey (RAL7040)
Ambient temperature	-60℃~+75℃
Weight	0.1~0.65kg
Type	Z,H,P
Connection thread	1. Metric thread is standard type; G thread or NPT thread is optional. (The seal bushings are supplied without filling compound. Please sepcify when ordering) 2. Metric threads are 1.5mm pitch as standard, others thread pitch can be customized, please specify when ordering.
