Economical wireline tractor offers unmatched performance

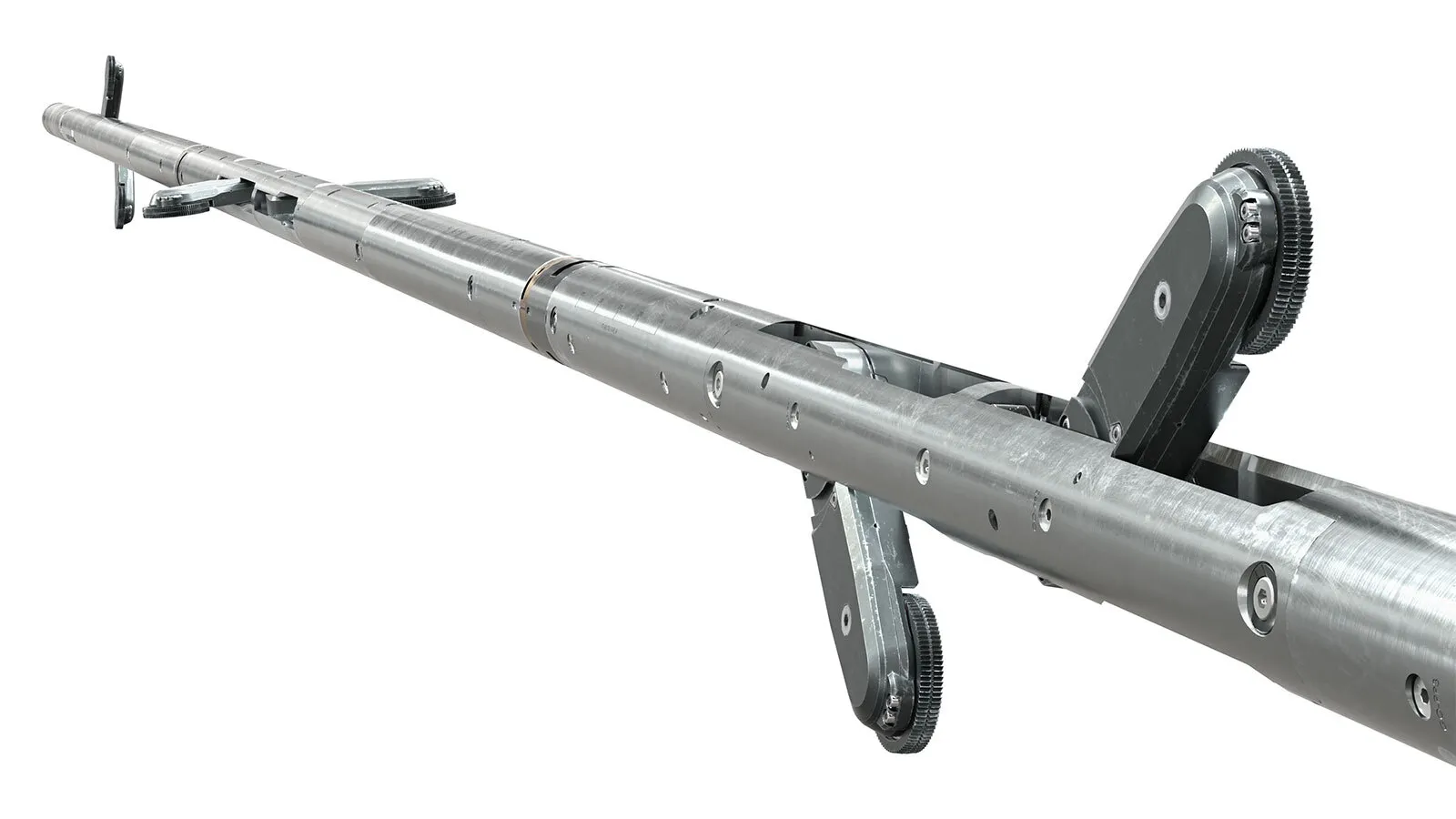

The TRAC PRO tractor is the most advanced wireline conveyance technology on the market for highly deviated or horizontal wells requiring cased-hole logging diagnostic, perforating, and powered mechanical intervention services. It uses an innovative electromechanical drive and real-time telemetry for communication and precise control to deliver unmatched performance compared to pipe-conveyed solutions:

1. Achieves speeds from 5 to 125 ft per minute
2. Carries pay loads up to 1,00o Ib with a single drive section
3. Provides an economical conveyance solution that acquires data in both up and down passes, which increases efficiency and reduces the potential for HSE incidents

Operator gains significant rig time savings with TRAC PRO@ service

25K

350˚F

Maximum temperature

25K

Variable tractor speeds from 5 to 125 ft/min

Benefits

• No need to change oil for different downhole temperatures

• Quick-change wheels

• Navigate tortuous wellbore geometries or extended-reach wells with multi-drive and tandem capability

• Supports all cased hole well intervention services

• Portable, truck, or skid mounted operation

Features

• Advanced electro-mechanical drive for improved efficiency and performance
• Real-time communication and control while tractoring, including downhole tension, collar locator, wheel speed, wheel torque, inclination, and relative bearing
• Downhole tractor force up to 2000 Ibs with in-situ force measurements
• Tractoring speeds up to 125 ft/min
• Reliable conveyance up to 350°F and 25,000 psi
• GripPro active torque-balanced traction control to each wheel to maximize force and minimize wheel slip
• Bi-directional forward and reverse capabilities
• On-command, surface-controlled arm pair open and close

•   API RP67 Compliant
