Japanese Standard Insulated Automotive Wire


Technical Parameters

Cross-Sectional Area (mm²)

Number of Conductor Strands (strands)

Diameter of Single Conductor Strand (mm)

Maximum Cable Outer Diameter (mm)

Maximum DC Resistance of Conductor at 20°C (Ω/km)

0.5f

20

0.18

2.2

38.6

0.5

7

0.32

2.2

34.6

0.75f

30

0.18

2.4

25.8

0.85

11

0.32

2.4

22.0

1.25f

50

0.18

2.9

15.5

1.25

16

0.32

2.9

15.1

2

26

0.32

3.4

9.30

3

41

0.32

4.1

5.90

5

65

0.32

4.9

3.72

8

50

0.45

5.6

2.45

The conductor is annealed and has good flexibility. The cross-linked polyethylene insulation is heat-resistant up to 120°C and has stable performance at high temperatures. It has excellent flame retardant properties, can effectively reduce the risk of fire, is also resistant to acid, alkali, gasoline and diesel corrosion, and can work stably for a long time in complex environments.

Product Features

Operating temperature range: -40℃～125℃

Conductor: Multi-strand bare copper wire or tinned copper stranded wire

The wire has scratch resistance of more than 10,000 times.

The cable has flame retardancy, oil resistance, low-temperature resistance, high-temperature resistance and other properties.

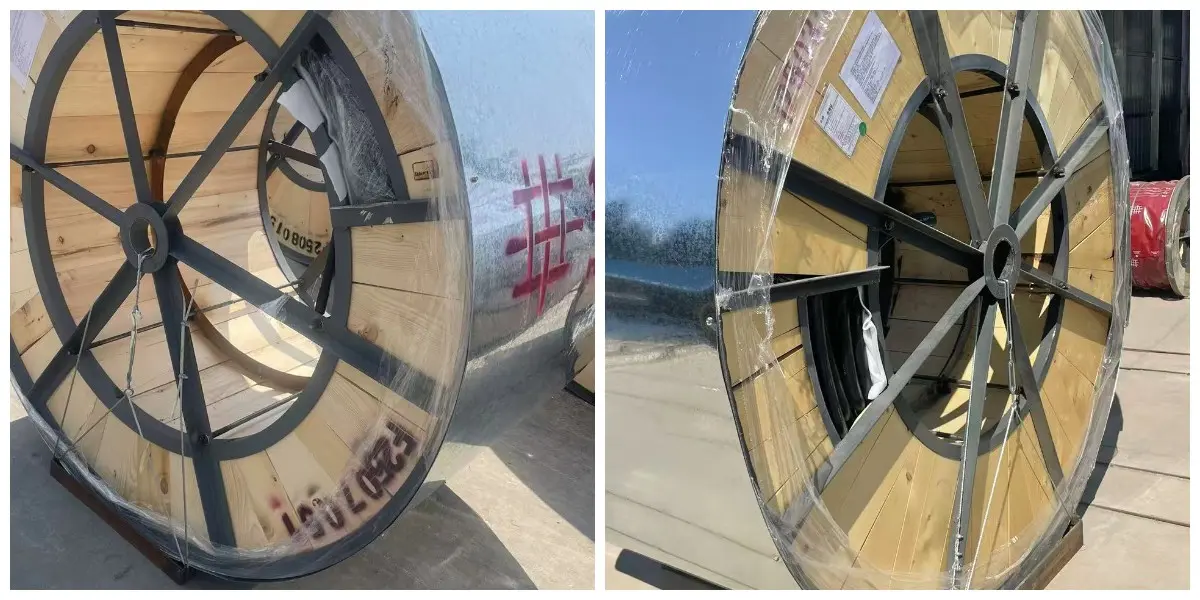

Packaging and Shipping
