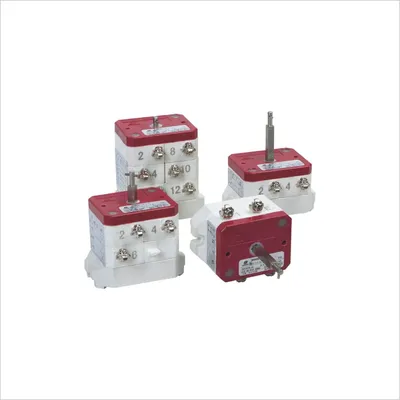

BK8050 Series Explosion Proof Control Switch 2P 3P 4P 6Pole Plastic Material

Product Details

Place of Origin: China

Certification: IECEx; ATEX; CU-TR

Model Number: BK8050

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Specifications
Highlight:

explosion proof control switch 2p

,

2p explosion proof control switches

,

3p explosion proof control switch

Explosion Protection Standard:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D
Number Of Pole:
2P, 3P, 4P, 6P
Avaliable In:
Latching And Spring-return Forms
Description
BK8050 Series Explosion Proof Control Switch 2P 3P 4P 6Pole Plastic Material

Specification
Global (IECEx)IECEx CQM 11.0011U
Gas Ex db eb IIC Gb
Europe (ATEX)LCIE 09 ATEX 3096U
GasBK8050 Series Explosion Proof Control Switch 2P 3P 4P 6Pole Plastic Material 1 II 2 G Ex db eb IIC Gb
CertificatesIECEx; ATEX
Conformity to standardsEN; IEC
Cable connection2.5mm2
Ambient temperature-20℃~+70℃(ATEX), -60℃~+90℃(IECEx)


Data
MaterialPlastic
Switch anglen x 45°/n x 90°
Material of rotary actuatorPolycarbonate (PC)
Service life105 times
Cable connection2.5mm²
Rated voltage

AC:500V 460V 440V 400V 380V 230V
AC/DC:220V 110V 48V 36V 24V 12V

Rated currentMax.20A
Panel materialAcrylonitrile-butadiene-styrene (ABS)
Seal materialNitrile butadiene rubber (NBR)
