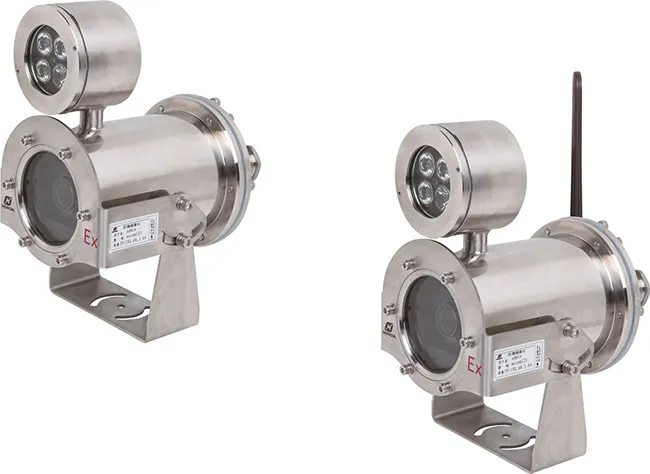

BJK-S/G Series Explosion Proof Camera Flameproof Steel Housing For Hazardous Area

Product Details

Place of Origin: China

Certification: IECEx; ATEX;

Model Number: BJK-S/G

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Specifications

Highlight: steel housing explosion proof camera, hazardous area explosion proof camera, IP68 explosion proof video camera

Explosion Protection:	CENELEC,IEC	Can Be Used In Zone:	Zone 1,2,21,22
Quality:	100% Explosion Proof For Flammable Use	Ingress Protection:	IP66 IP68
Functions:	Anti-explosion	Video Compression:	H.265, H.264, H.264B, MJPEG

Description

BJK-S/G Series Explosion Proof Camera Flameproof Steel Housing For Hazardous Area

Product Introduction

Specification

Global (IECEx)	IECEx TUR 22.0044X
Gas and dust	Ex db IIC T6 Gb Ex tb IIIC T80°C Db
Europe (ATEX)	TUV 22 ATEX 8864 X
Gas and dust	II2 G Ex db IIC T6 Gb II2 D Ex tb IIIC T80℃ Db
Certificates	IECEx; ATEX
Conformity to standards	EN IEC 60079-0, EN 60079-1, EN 60079-31 IEC 60079-0, IEC 60079-1, IEC 60079-31
Rated voltage	176-264VAC, 88-132VAC, 24VAC, 24VDC and 12VDC
Resolution	2 million pixels 3 million pixels 4 million pixels

Data

Video coding format	H.265, H.264, H.264B, MJPEG
Wireless module	Support 4G, 5G, WIFI connection
Housing material	304 stainless steel or 316 or 316L
Degree of protection	IP66/IP68
Ambient temperature	-60℃~+63℃
Cable gland	2×M20×1.5 or NPT 1/2" inlet port, suitable for Φ6.5mm~Φ14.5mm
Installation method	fixed bracket, base, column
Weight	5kg
