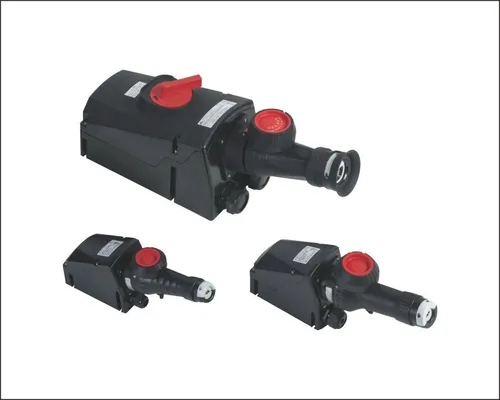

CZ8060 Series Explosion Proof Plug And Sockets , GRP Flameproof Plug Socket

Product Details

Place of Origin: China

Certification: IECEx; ATEX; CU-TR

Model Number: BCZ8060

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Specifications

Highlight: grp explosion proof plug and sockets, oem explosion proof plug and sockets, grp flameproof plug socket

Explosion Protection:	CENELEC,IEC,NEC	Can Be Used In:	Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D
Material:	GRP(glass Fibre-reinforced Polyester Resin)

Description

BCZ8060 Series Explosion Proof Plug And Sockets , GRP Flameproof Plug Socket

Product Introduction


Specification

Global (IECEx)	IECEx CNEX 21.0004X
Gas and dust	Ex db eb IIC T6 Gb Ex tb IIIC T80℃ Db IP66
Europe (ATEX)	CNEX 21 ATEX 0003X
Gas and dust	II 2 G Ex db eb IIC T6 Gb II 2 D Ex tb IIIC T80℃ Db IP66
Certificates	IECEx; ATEX; CU-TR
Conformity to standards	EN;IEC
Degree of protection	IP66
Ambient temperature	-20℃~+55℃

Data

Material	GRP(glass fibre-reinforced polyester resin)
Weight	0.35kg~1.5kg
Dimensions	As per design
Enclosure colour	Black
Exposed fastener	Stainless steel
Rated voltage	DC 50V-250V,12V-48V AC 480V-500V,380V-415V,200V-250V,100V-130V,12V-48V
Rated current	10A,16A
Cross section of cable	2.5~4mm²
Cable entries	Standard 1 x M25x1.5 cable gland(plastic), 1 x M25x1.5 plug (plastic)
Cable gland(optional)	DQM-I(Ex e)
