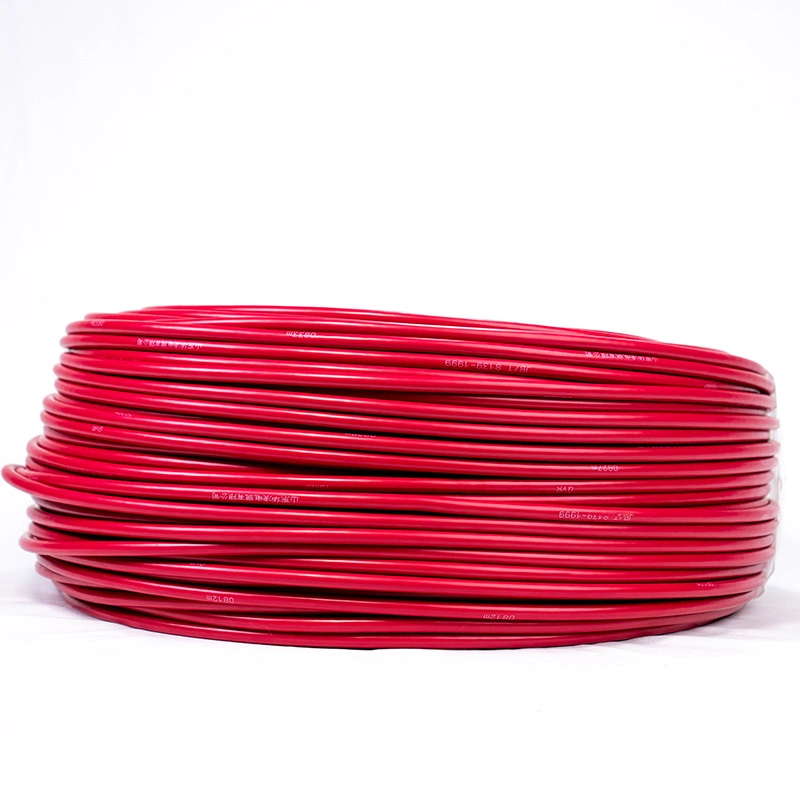

American Standard Automotive Wire

0086-010-61419525

0086-13102279656

contact@beijing-market.com

Its insulation is made of cross-linked polyethylene, which complies with SAE J1128 and other standards. Its long-term working temperature does not exceed 125°C, and it has good heat resistance. It is oil-resistant, cold-resistant, flame-retardant, wear-resistant, has good mechanical properties, can withstand large stress, is easy to cut and strip, and is easy to install. It performs well in automotive electrical systems.

American Standard Automotive Wire

Product Features

Operating temperature range: -40°C ~ 125°C

Conductor: Multi-strand bare copper wire or tinned copper stranded wire

The wire can withstand more than 10,000 scratch tests.

The cable has flame-retardant, oil-resistant, low-temperature-resistant and high-temperature-resistant properties.

Executive Standard

It complies with the standard SAE J1128 Low-Voltage Primary Cable. SAE J1128 is a relevant standard formulated by the Society of Automotive Engineers (SAE), which specifies various technical requirements and test methods for this wire.

Product Description

It is mainly used in the starting, charging, lighting, signal and dashboard circuits of motorcycles and other motor vehicles, and is especially suitable for circuits requiring heat resistance. As internal connecting wire for automobiles, it has excellent mechanical properties such as high temperature resistance and scratch resistance.

Technical Parameters

American Wire Gauge (AWG)	Cross-Sectional Area (mm²)	Maximum DC Resistance at 20°C (Ω/km)	Insulation Thickness (mm)	Maximum Cable Outer Diameter (mm)
20	0.5	34.6	0.58	2.40
18	0.8	21.8	0.58	2.50
16	1	13.7	0.58	2.90
14	2	8.62	0.58	3.20
12	3	5.43	0.66	3.80
10	5	3.41	0.79	4.70
8	8	2.16	0.94	6.00
